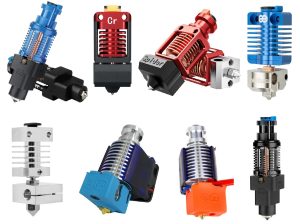

Hotends for 3D Printers

he hotend is a key component of any FDM (Fused Deposition Modeling) 3D printer, which is tasked with melting plastic filament and precisely applying it layer by layer to the print substrate, creating a physical object. It is a heated component that transforms the solid filament into a liquid form at a specific temperature that varies depending on the type of material used.

### Hotend Structure and Functions

**1. Heat Break**: The heat barrier separates the heated part of the hotend from the cooling system, preventing excessive heat from spreading upwards and causing "heat creep" that could lead to hotend blockage.

**2. Heater Block**: The heater block is the element that heats and transfers heat to the filament. It contains a heating element (usually a resistive cartridge) and a temperature sensor (thermistor) that together regulate the filament's melting temperature.

**3. Nozzle**. Nozzles can have different diameters, which affects the detail and speed of the print.

**4. Cooling Fins**. It is often supplemented with a fan for better cooling.

### Importance of Hotend for 3D Printing

- **Printing Accuracy and Quality**: The hotend temperature must be precisely controlled to achieve optimum viscosity of the filament being printed. This affects both print quality and detail accuracy.
- **Material Compatibility**: Different printing materials require different fusing temperatures. The universal hotend allows printing with a wide range of materials, from common PLA to specialty filaments such as TPU or nylon.
- **Clog Prevention**: A properly designed and maintained hotend minimizes the risk of clogging, a common problem that can disrupt the printing process.

The hotend is therefore the heart of the 3D printer, and its efficiency and proper functioning are essential for successful printing. The selection and maintenance of the hotend are key to achieving optimal printing results.
