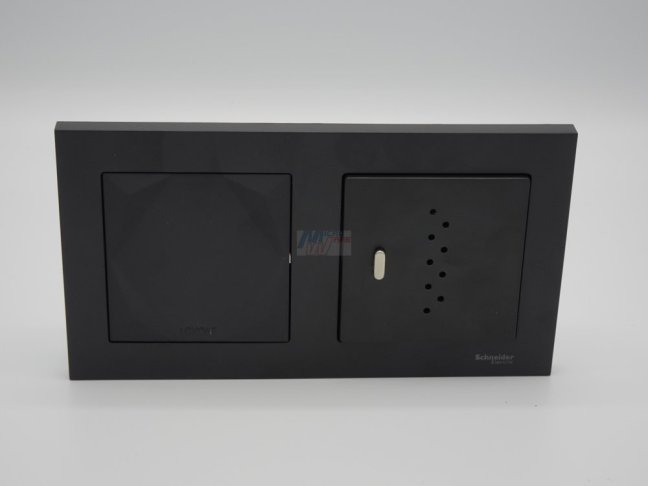

1-Wire wall sensor T, RH, CO2, illumination (combination of parameters by agreement) - anthracite
1-Wire wall sensor T, RH, CO2, illumination (combination of parameters by agreement) - anthracite
Measurement of temperature, humidity, CO2 concentration, illumination More
Product code: 57017 Shipping and Payment
Measurement of temperature, humidity, CO2 concentration, illumination More
Product code: 57017 Shipping and Payment
- communications 1-Wire Dallas
- for wall mounting or KU68 installation box
- measurement of temperature, relative humidity, CO2 concentration
- analogue input 0÷10V (AI)
- digital input (DI)
- version with sensor DS18B20 (DS18S20) - 2 communication addresses
The sensors are designed for measuring physical quantities in interiors with high aesthetic requirements.
The information about the measured values of the variables is transmitted via the DS2438 circuit to the 1 wire communication bus. Each sensor has its own unique address, which must be detected via the bus using a master device - e.g. 1 wire extension from Loxone.
The electronics of the sensor consists of two parts. The main part with terminals is placed in a box that is inserted into the installation box, the measuring sensors are built into the plugs of the required designs. The sensors must be protected from dirt, excessive dust or direct exposure to water!
The operating conditions are suitable for normal chemically non-aggressive environments where the sensors require no maintenance or servicing.
