Accessories for LED strips - set WW

Forget the annoying soldering - with LED strip quick connectors, connecting or extending a warm white LED strip is quick and easy.

Set of accessories for warm white LED strips
For simple and time-efficient installation
Ready to install - no soldering required
5 × Clamp for easy connection of 2 strips
5 × Initial clamp More

Manufacturer: Loxone Electronic GmBHProduct code: 56671 Shipping and Payment

13,75 € excl. VAT (16,64 € incl. VAT)
Sale FINISHED
ks

Forget the annoying soldering - with LED strip quick connectors, connecting or extending a warm white LED strip is quick and easy.

Set of accessories for warm white LED strips
For simple and time-efficient installation
Ready to install - no soldering required
5 × Clamp for easy connection of 2 strips
5 × Initial clamp More

Manufacturer: Loxone Electronic GmBHProduct code: 56671 Shipping and Payment

Accessories for LED strips in the form of quick connectors are a nice improvement to the installation of LED strips.

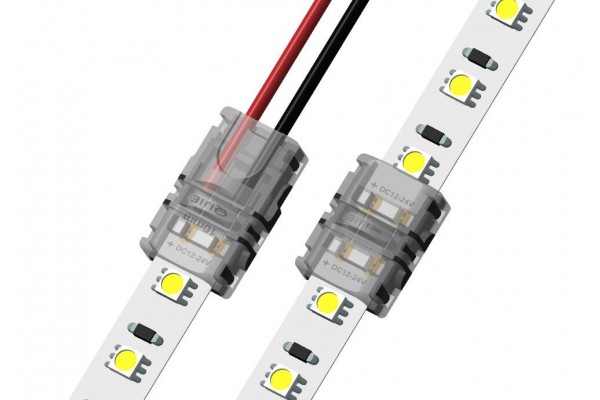

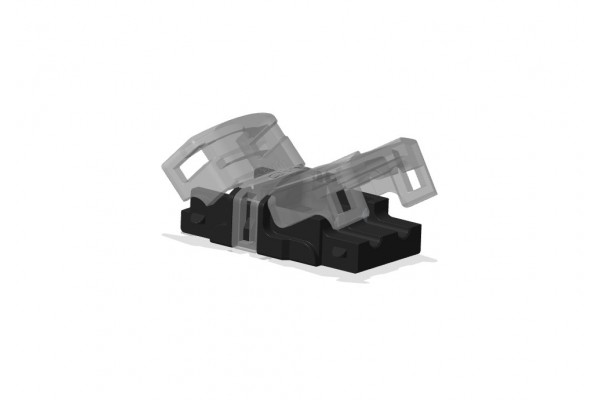

• Quick connectors: Connect two warm white LED strips without the need for soldering. Thanks to this, you can, for example, reconnect shortened LED strips.

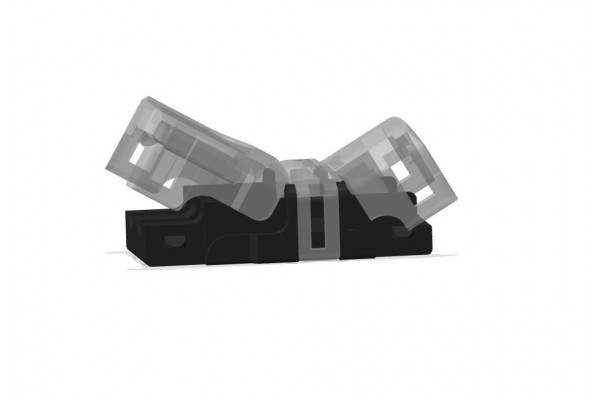

• Connecting connectors: Connect the strips with an RGBW 24V Dimmer. Alternatively, create corners using 2 of these connectors.
Attention! These connectors can connect a maximum of 10 m of LED WW strips.

Technical data
• Operating voltage: 0–36V
• Operating current: 7.5 A per channel (10m LED strips are no problem)
• Ambient temperature: -30–50 ° C
• Flammability: UL-94-V0
• Wire diameter without insulation: 0.35–1 mm2
• Wire diameter incl. Insulation: 1.5–2.1 mm2
• Connection terminal dimensions: 24.3×14.6×7.7mm (L×W×H)

Package contents
• 5 × Quick connector
• 5 × Connection connector

Download
acc. LED strip WW (pdf, 212.6 kB)
