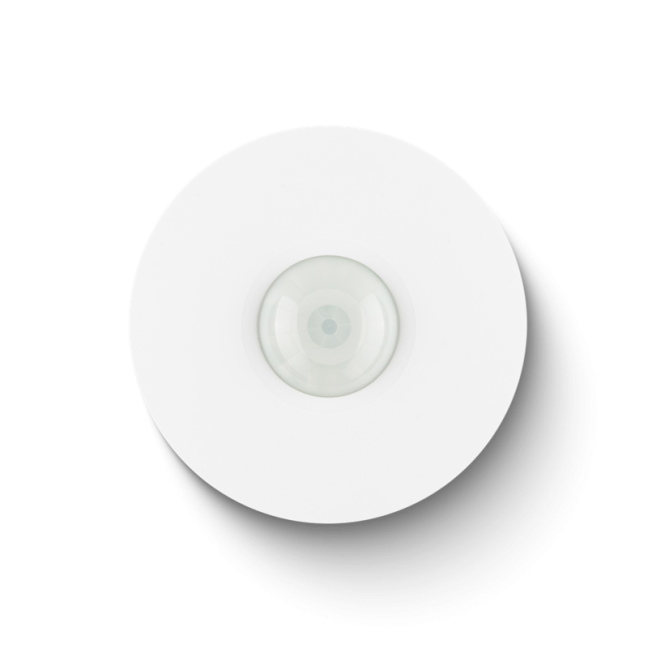

Presence sensor Air white
Presence sensor Air white
The occupancy sensor is one of the most important sensors in any type of intelligent automation project. With reliable presence and motion detection, they form the basis for automating important functions such as lighting, alarms, music, heating, ventilation or cooling and much more.
Reliably detects motion and presence using infrared and acoustic sensors.
High range: 360° scanning at 110° (8 m diameter with 3 m ceiling height). Adjustable sensitivity in 4 stages
High quality illuminance sensor measures (measures from 0 Lux to 83,000 Lux)
Individually adjustable threshold for the acoustic sensor in presence detection
Individually adjustable threshold value for the acoustic sensor within the alarm.
Stickers for shielding the sensor optics
The Tree occupancy sensor (100422) replaces the Tree motion sensor (100223). More
Manufacturer: Loxone Electronic GmBHProduct code: 56359 Shipping and Payment
The occupancy sensor is one of the most important sensors in any type of intelligent automation project. With reliable presence and motion detection, they form the basis for automating important functions such as lighting, alarms, music, heating, ventilation or cooling and much more.
Reliably detects motion and presence using infrared and acoustic sensors.
High range: 360° scanning at 110° (8 m diameter with 3 m ceiling height). Adjustable sensitivity in 4 stages
High quality illuminance sensor measures (measures from 0 Lux to 83,000 Lux)
Individually adjustable threshold for the acoustic sensor in presence detection
Individually adjustable threshold value for the acoustic sensor within the alarm.
Stickers for shielding the sensor optics
The Tree occupancy sensor (100422) replaces the Tree motion sensor (100223). More
Manufacturer: Loxone Electronic GmBHProduct code: 56359 Shipping and Payment
Unique multi-sensor technology: motion, presence and brightness detection
High range
It's got it all in spades: 360° scanning at 110° (8 m diameter with 3 m ceiling height). Adjustable sensitivity in 4 stages.
Presence detection
Presence detected based on motion is augmented by an acoustic sensor. The acoustic detection limit can be set using Loxone Config.
Illuminance sensor
The high quality, wide-range illuminance sensor is ideal for implementing brightness-dependent functions.
Versatile acoustic sensor
Thanks to the integrated acoustic sensor (for the Air variant with fixed power supply only), the Occupancy Sensor offers an even wider range of possible applications.
Automatic operation time
The lights are activated by movement. The lights are kept on by movement and also by acoustics. For example, if you're watching TV and you're not moving in the room, the lights will stay on based on the acoustic sensor.
Easy reactivation
When the lights in the room are switched off, they can easily be switched back on within 10 seconds with noise.
Individual alarm threshold
If a certain noise level (configurable in Loxone Config) is exceeded, the alarm output of the Occupancy Sensor is activated. Loxone Miniserver will then trigger an alarm or send you an alert.
This is how noise detection works
The occupancy sensor is equipped with an acoustic sensor that detects sounds and measures the volume level. Everything is transferred to the Loxone Miniserver.
*Sound sensor for Air variant with fixed power supply only
Presence detection in assisted living
Elderly people or people who need care often live alone and presence detection is a great feature to ensure their safety. If the Occupancy Sensor does not detect activity in the room for a period of time, it can send an alert to caregivers or a loved one.
Easy installation and commissioning
Thanks to the mounting plate, the Occupancy Sensor can be placed anywhere: on the ceiling, wall or in a 68 mm installation box. With Loxone Air or Tree technology, you can start using it in minutes using Loxone Config.
Tree occupancy sensor and other Tree products are launched
easily and quickly thanks to Plug & Play features. They also work perfectly with other components of the Loxone system. Thanks to flexible wiring, everything is ready in a few moments.
The Air occupancy sensor connects wirelessly to the Loxone Air system. Thanks to the energy-saving technology, the occupancy detector can be supplied with a 24 V DC power supply or with a battery (lifetime of approx. 2 years).
Contents of the package
Occupancy Sensor Tree
- 1x Tree occupancy sensor (white/anthracite)
- 1x Mounting plate
- Sticker covering the Fresnel lens to limit the detection range
Air occupancy sensor
- 1x Air occupancy sensor (white/anthracite)
- 1x Mounting plate
- 2x AA Batteries
- Sticker covering the Fresnel lens to limit the detection range
