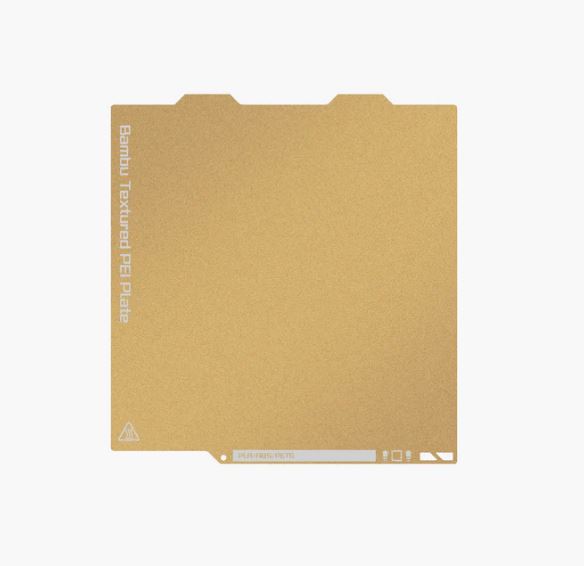

Bambu Lab - Bambu Textured PEI Plate - A1 mini
Bambu Lab - Bambu Textured PEI Plate - A1 mini
A1 Textured PEI plate More
Manufacturer: Bambu Lab EUProduct code: 57798 Shipping and Payment
23,71 € excl. VAT (28,69 € incl. VAT)
Recommended settings
Please note that you may need to adjust other slier settings based on the printed model and filament requirements.Material | Heatbed temperature | The need for taping? |
PLA/PLA-CF/PLA-GF | 45~60 deg. C | NE |
PETG/PETG-CF | 60~80 deg. C | Glue Stick/Liquid Glue |
TPU | 35~45 deg. C | Glue Stick/Liquid Glue |
PVA | 45~60 deg. C | Glue Stick/Liquid Glue |
Spontaneous release after cooling
PEI is an excellent material for 3D printing applications due to its ability to withstand repeated heating and cooling cycles of the printer's heatbed. Prints are easily removed when the temperature of the heating pad reaches room temperature, and we always recommend waiting until it reaches 35 deg. C or lower. If the print still sticks to the plate, simply bend the steel plate and the model will fit right into your hands.
*In some situations, an adhesive is required for very specific fibres
*In some situations, an adhesive is required for very specific fibres
Textured finish
Bambu Texture PEI Plate offers a unique first layer surface. Through the application of a powder coating process, this PEI Build Plate creates a rough texture that adds texture to your prints.
Compatibility with different materials, especially PLA
PEI allows printing with common materials such as PLA, TPU, PETG and PVA. Note: Use a liquid glue or glue stick to prevent the plate from tearing if you print a filament other than PLA.
Installation steps
Step 1: Align the rig's fixed point label with the label name facing you
Step 2: Lower the printing plate and attach it to the magnetic surface
Product Specifications
Materials |
PEI powder coating + stainless steel plate |
Surface temperature resistance |
Up to 180 st C |
Print plate height |
0.4 mm |
Thickness of textured PEI |
0.075 mm |
Applicable print size |
180*180 mm |
Package size |
220*195*15 mm |
Package weight |
230 g |
Color |
Golden |
