Eddy current surface sensor for 3D printers:
Native displacement output - no Z-axis movement is required for sensing.
Network in scan mode - sampling a dense network in seconds
Low thermal drift - minimized by design, active compensation for everything else
Compatibility with printers:
Printer Compatibility:Firmware: Klipper
Compatibility: USB to single board computer
Bed: Conductive surface or substrate, 400um or thicker. Bare steel, WHAM BAM, PEI coated steel or laminated steel etc. It is not recommended for use with beds with large or oversized fixed magnets.
Includes:
1x beacon board (main PCB, sensing PCB, headers, cable connector)

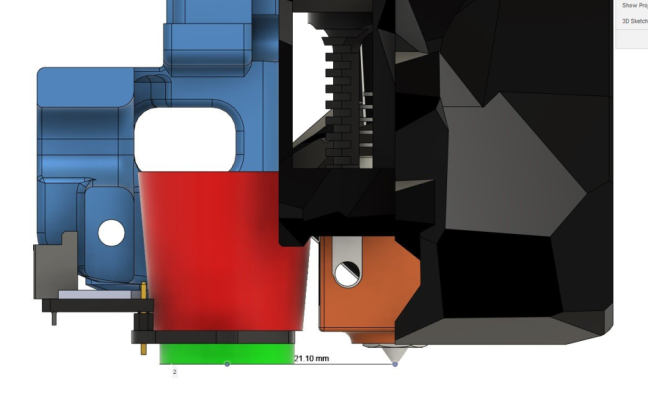

Variants - this is important for the appropriate mounting of the Beacon device on the tool head:
Conventional: the main PCB board and the PCB sensing board are mounted flat.
on order - Low profile: the main PCB and the PCB sensing board are mounted flat (same as the cable connector).
to order - Right angle: the main PCB board and the PCB sensing board are mounted at 90 degrees to each other.
Unassembled: all parts are supplied unassembled (instructions).
Warranty:
60-day standard warranty
Varianta Beacon | NORMAL, LOW_PROFILE, RIGHT_ANGLE, UNASSEMBLED |
---|
