Product features

• 340*320*340 mm3 Print volume
• Multi-color 3D printing
• Closed-loop servo motor extruder
• Optional 10W laser and cutting module
• Optical motion calibration with 5 µm resolution
• 350 °C nozzle and 65 °C active chamber heating
• AI detection of the entire filament path
• Voltage range: 200–240 V

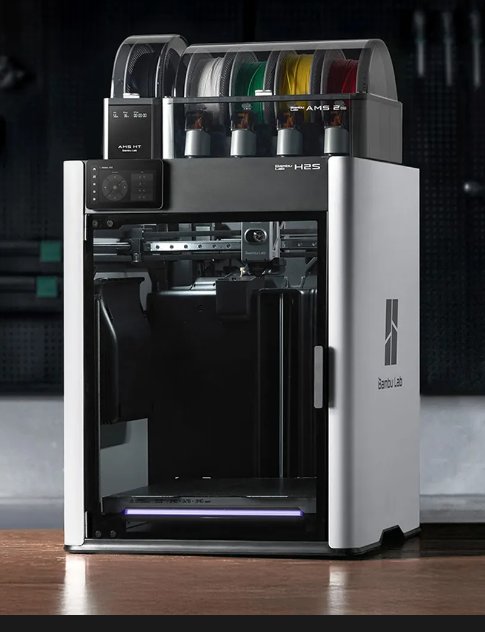

Bambu Lab H2S with AMS Combo (PF003-S + SA007-EU) — detailed description

What it is

Large-format FDM 3D printer with a single nozzle, enclosed and actively heated chamber, and AMS 2 Pro package for fully automatic multi-color/multi-material printing. The "AMS Combo" variant includes the H2S printer and the AMS 2 Pro unit; the laser module is not included, but can be added as an optional accessory. (eu.store.bambulab.com)

Set product code: PF003-S + SA007-EU (H2S + AMS 2 Pro). (3D Republika)

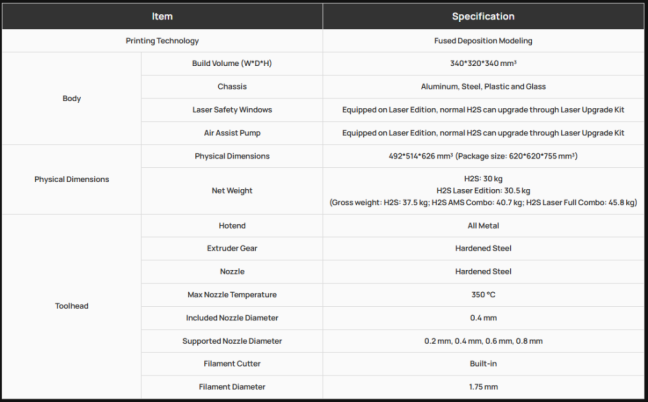

Key parameters of the H2S printer

• Build volume: 340 × 320 × 340 mm. (eu.store.bambulab.com)
• Technology: FDM (CoreXY).
• Nozzle and hotend: max. 350 °C, supplied nozzle 0.4 mm; supported diameters 0.2 / 0.4 / 0.6 / 0.8 mm; integrated filament cutter.
• Bed: max. 120 °C, compatible with Textured PEI and Smooth PEI boards.
• Actively heated chamber: up to 65 °C (stability of technical materials).
• Speed & dynamics: head speed up to 1000 mm/s, acceleration up to 20,000 mm/s2; extruder (PMSM servo) up to 10 kg of extrusion force, +67% vs. conventional stepper motors. (eu.store.bambulab.com)
• Optical motion accuracy: calibration with a resolution of 5 µm; declared < 50 µm motion accuracy (with Vision Encoder, optional). (eu.store.bambulab.com)
• AI/vision system: 23 sensors + 3 cameras (pre-flight check, spaghetti/clump detection, condition monitoring). (eu.store.bambulab.com)
• Safety: 5× flame sensor, emergency STOP, laser-safe window (for laser variant), cabin material made of retardants. (eu.store.bambulab.com)
• Power supply: 200–240 V (EU version), peak power consumption up to 2050 W @ 220 V (short-term for quick pad start-up). (eu.store.bambulab.com)
• Noise level: < 50 dB (active motor noise suppression). (eu.store.bambulab.com)
• Dimensions and weight: 492 × 514 × 626 mm, approx. 30 kg.

AMS 2 Pro (part of "AMS Combo")

• 4 coils per unit, possibility of chaining up to 24 threads (4× AMS 2 Pro + 8× AMS HT). (bambulab.com)
• Drying at up to 65 °C with self-rotating coils for even drying; electromagnetic ventilation for drying and airtight storage. (eu.store.bambulab.com)
• RFID sync: automatic loading of settings for official Bambu filaments. (eu.store.bambulab.com)
• Fast feeding thanks to brushless/servo drive (up to +60% faster material changes). (3DJake International)

Note: AMS 2 Pro is a standard component of the "H2S AMS Combo"; the laser/cutting module can be purchased separately. (eu.store.bambulab.com)

Materials

Support for a wide range: PLA, PETG, TPU, PVA/BVOH, ABS, ASA, PC, PA, PET, PPS, including CF/GF filled variants (PA-CF, PC-CF, etc.). Active chamber and flow control minimize deformation and improve layer adhesion.

Print quality and stability

• Active vibration compensation in real time. (eu.store.bambulab.com)
• DynaSense extruder: closed-loop pressure control in the nozzle; more precise surfaces and sharp edges. (eu.store.bambulab.com)
• Auto Hole/Contour Compensation: compensation of hole dimensions for machine-shop precision of part fitting. (eu.store.bambulab.com)

Safety and operation

• Flame detection, door/cover sensors, emergency stop, air control with HEPA H12 + carbon filtration. (eu.store.bambulab.com)
• Flow modes for printing low/high-temperature materials and suction mode for laser/cutting. (eu.store.bambulab.com)

Connectivity & software

• Wi-Fi; control via 5" 720×1280 touch panel, mobile app, and PC (Bambu Studio / Suite).
• Offline mode available (no cloud); Developer Mode with MQTT (restricted for safety reasons in laser/cutting modes). (eu.store.bambulab.com)

What's in the box – "H2S AMS Combo"

• Bambu Lab H2S, Textured PEI build plate, reel holder, accessories, AMS 2 Pro. (Laser module not included in this version.) (eu.store.bambulab.com)

When to choose the H2S AMS Combo

• You need a large print volume (3403 mm) and fast production with high precision. (eu.store.bambulab.com)
• You want multi-color/multi-material printing with integrated drying and management of up to dozens of filaments. (bambulab.com)
• You prefer the option of future expansion with a 10W laser/plotter/drawing module, but you don't need it now.

Brief technical summary

• Volume: 340×320×340 mm; max. speed 1000 mm/s; acceleration 20,000 mm/s2.
• Temperatures: nozzle 350 °C, bed 120 °C, chamber 65 °C.
• Sensors/cameras: 23 + 3; AI error detection. (eu.store.bambulab.com)
• Filtration: G3 + HEPA H12 + activated carbon.
• Dimensions/weight: 492×514×626 mm / ~30 kg.
• EU power supply: 200–240 V; peak up to ~2050 W @ 220 V (short-term during heating). (eu.store.bambulab.com)
