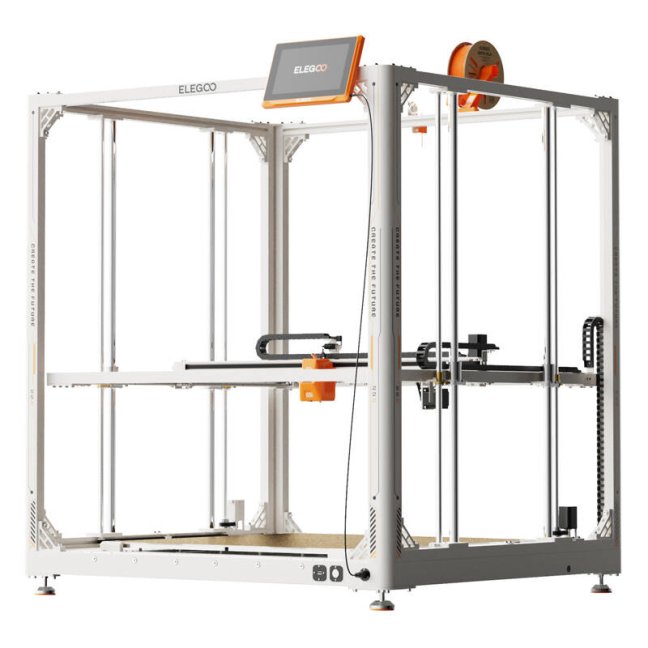

ELEGOO OrangeStorm Giga KIT 3D printer (unassembled)

Warning:

The printer is delivered completely disassembled (kit). Assembly can be ordered from us.

Handling is difficult!

Weight: 145 kg

Machine dimensions: 1224 x 1164 x 1425 mm

Package dimensions: 1350 x 1215 x 420 mm (bottom parts and XY axis components); 1350 x 1215 x 350 mm (Z axis components).

Maximum working area of the machine: 1224 x 1520 x 1570 mm

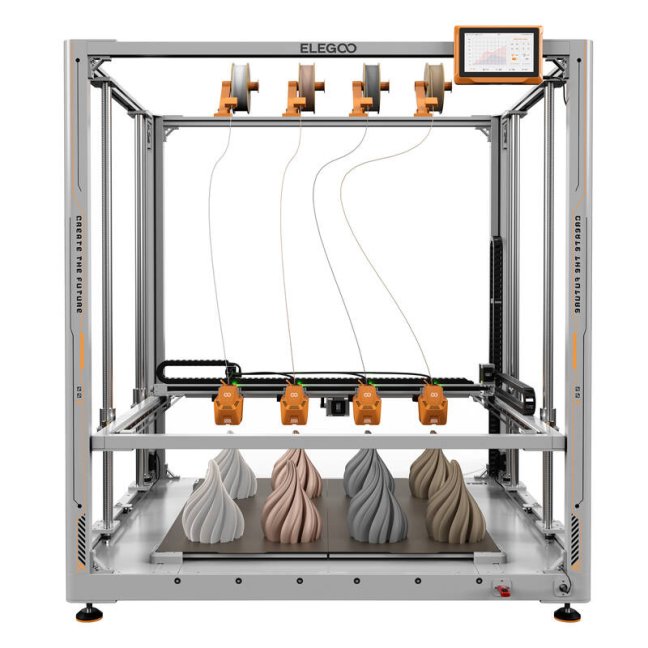

ELEGOO OrangeStorm Giga giant

is an industrial-grade 3D printer designed for extremely large projects. With its huge working area and advanced features, this device is ideal for professionals who need a reliable tool for producing large-format models. The OrangeStorm Giga printer opens up completely new possibilities in prototyping, architecture, industrial design and manufacturing, allowing you to create parts that would have to be split into smaller pieces on other machines.

1. Maximum creative possibilities If you need to print on a large scale, the OrangeStorm Giga is the ideal choice. With a working area of 800 x 800 x 1000 mm, it allows you to create full-size models and saves you time cutting designs into smaller pieces. Just load the model and let the printer do the work - a simpler and more efficient solution for large projects.
2. Fast and efficient platform heating The OrangeStorm Giga heating platform consists of four independent PEI tiles, each measuring 410 x 410 mm. The entire surface can be heated evenly to 100 °C in just 17 minutes, allowing for faster printing and ensuring better adhesion of models to the platform. The ability to automatically identify and heat only the active part of the platform also enables significant energy savings.
3. Extreme printing speed The OrangeStorm Giga printer is equipped with a powerful 64-bit quad-core processor that provides the stability and computing power needed for high-speed printing. With a maximum print speed of 300 mm/s (recommended speed 150 mm/s), the OrangeStorm Giga is one of the fastest printers in its class, significantly reducing the time required to complete large projects.
4. Even more possibilities The OrangeStorm Giga printer supports simultaneous printing with four nozzles. In a single cycle, you can print four copies of the same model using different filament colours or the same material. This feature allows you to create multi-coloured models and increases production flexibility, which is particularly useful in commercial and industrial applications.
5. Efficient cooling The OrangeStorm Giga printer is equipped with powerful cooling fans on both sides of the chassis to increase stability and printing accuracy. Intelligent fan control allows the fans to be turned off after printing, reducing energy consumption and noise while extending the life of the device.

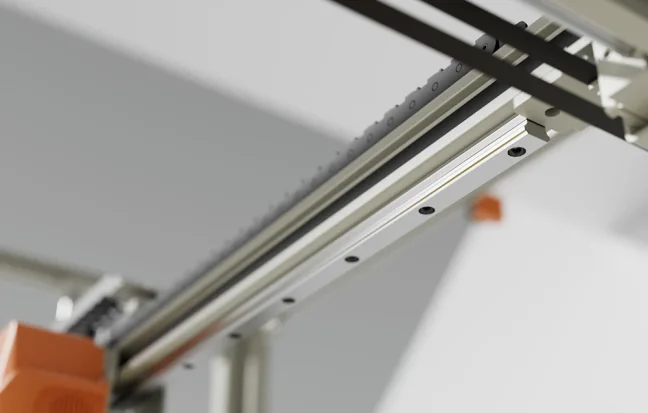

6. Reliable construction and high-quality components The OrangeStorm Giga is a 3D printer with a robust construction featuring linear guides on the X and Y axes, which increases print stability and head movement accuracy. The Z axis is equipped with an advanced guide mechanism that ensures smooth and precise movement. In addition, a sturdy steel base and non-slip feet are used to ensure the stability of the device during operation.

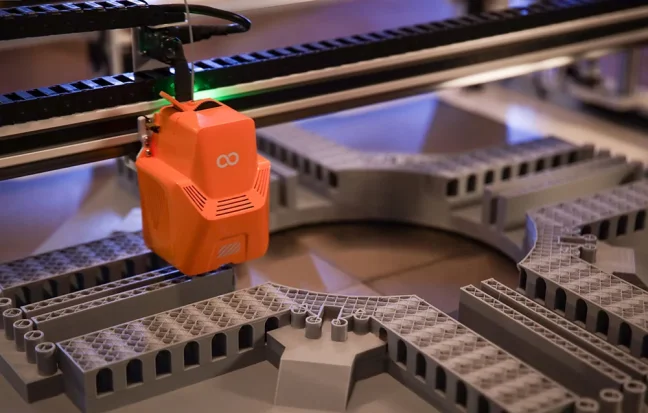

7. Advanced print head with automatic calibration The OrangeStorm Giga's print head reaches temperatures of up to 300 °C, allowing you to print from a variety of materials such as PLA, PETG, TPU and nylon. A chrome-zirconium copper nozzle and a 60W ceramic heater ensure even and accurate material flow, while PID calibration and automatic resonance compensation further enhance print quality and stability.
8. Included in the package:

• OrangeStorm Giga 3D printer
• Print head
• Screen
• Levelling plate × 2 pcs
• Spool holder arm
• Spool holder
• Filament break detector × 2 pcs
• Z-axis cable lock
• Z-axis end stop × 2 pcs
• Aseemba filament guide
• Spool holder module (5 kg)
• Power cable
• Levelling card
• Lubricant
• Proofile corner bracket × 8 pieces
• Tools
• Connecting material
• User manual Manufacturer: ELEGOO Model: OrangeStorm Giga Printing technology: FDM (Fused Deposition Modelling). Working space: Plastic printer: 800 x 800 x 1000 mm3 Working platform: 820 x 820 mm (4 independent PEI plates measuring 410 x 410 mm). Printing speed: Up to 300 mm/sec. Nozzle temperature: Max. 300 °C Heating bed temperature: 1.5 °C Max. 100°C Compatible materials: PLA, PETG, TPU, Nylon Net weight: Weight: 104 kg Gross weight:145 kg Power supply: 100-120 V / 220-240 V File transfer methods: USB, LAN, WiFi Supported file formats: STL, OBJ Interface languages: English, French, German, Russian, Italian, Spanish, Japanese, Chinese.Machine dimensions: 1224 x 1164 x 1425 mm Package dimensions: 1350 x 1215 x 420 mm (bottom parts and XY axis components); 1350 x 1215 x 350 mm (Z axis components).Maximum working area of the machine: 1224 x 1520 x 1570 mm

Warning and safety information All information regarding the use of the product can be found in the user manual. Read the contents before use and follow the instructions contained therein. Also read the following information before use:

Warning for use Risk of burns and overheating:?

Some parts of the product can reach very high temperatures.?

Do not touch hot parts of the product during operation or immediately after operation. ? Use protective equipment such as heat-resistant gloves during maintenance.

Risk of contact with chemicals:

? Some substances used in 3D printers are toxic and require special handling. Work in a well-ventilated area and wear protective gloves, goggles and a mask.?

The chemicals used in printing are toxic and may cause severe allergic reactions or poisoning if swallowed or absorbed through the skin.

? Avoid contact with eyes, mouth and skin.?

In case of contact with chemicals, rinse the affected area immediately with plenty of water and seek medical advice. Risks for children and animals:?

The product is not intended for children and is not a toy.

? Only allow adults who are aware of the risks associated with its use to access the device.?

3D printers, filaments, resins and accessories such as dryers and printing pads contain components that may pose a risk of suffocation, injury or contact with hazardous substances.

? Keep the product out of reach of children to prevent them from swallowing small parts, coming into contact with hazardous substances or injuring themselves.

Risk of electric shock:?

All appliances must be connected to a properly earthed socket.

? Check the condition of the cables, plugs and power supplies regularly. In case of damage, stop using the appliance immediately and contact a service centre.

? Do not touch the appliance with wet hands, even if it is disconnected from the mains. Fire hazard: ? Keep chemicals away from heat sources and open flames.

? Ensure that the appliance is used in a well-ventilated area, away from flammable materials.?

Never leave the appliance unattended when in use.

Risk of noise and vibration:?

The appliance may cause noise and vibration during operation. Place it on a stable, damp-proof surface to minimise these effects.

? Consider using hearing protection when working near the device for long periods of time, especially in small rooms.

Risk of damage to the product:?

Only use consumables (fibres, resins) that comply with the printer manufacturer's recommendations. The use of incompatible materials may damage the nozzles, heating platform or other parts of the device.

? Regularly check the condition of the print head, drive belts and guides. Contamination or wear can affect print accuracy and the service life of the device. ? Do not exceed the maximum drying temperature recommended for the type of filament - excessive heat can cause material deformation and damage to the dryer.

? Ensure that resin and other chemical materials are washed and dried according to the manufacturer's instructions.?

Never use the printer, dryer or washing machine for printing in a damp environment, near water or in areas exposed to vibrations.

? Place the device on a stable, flat surface to prevent movement or damage to the moving mechanism.?

Do not use excessive force when assembling or maintaining the device - this may cause permanent damage to delicate components such as nozzles, resin reservoirs or drive belts.

Wireless connection Data protection:

? If your device offers Wi-Fi, Bluetooth or cloud integration, make sure it is secured with a strong password and, if possible, use connection encryption.?

Do not disclose your login details to unauthorised persons. When changing your password, use unique combinations that are difficult to guess. Access management:

? Keep track of the list of devices connected to the printer, especially if it uses a local network. Remove devices that are no longer needed.?

Restrict remote access to print management devices to trusted users only. Information on proper use Installation and configuration:

? Before starting for the first time, make sure that all device components are correctly assembled and configure them according to the manufacturer's recommendations.?

Calibrate the printing platform regularly to prevent print deformation. ? For filament dryers, make sure that the device is operating at the correct temperature to prevent damage to the materials.

Maintenance, storage and cleaning:?

Clean the print nozzles after each prolonged use to prevent filament clogging.?

Replace the resin in SLA printers regularly and wash the containers according to the manufacturer's recommendations.

? Store filaments in dry, airtight containers, preferably with a desiccant, to prevent moisture and loss of mechanical properties.?

Store products in dry places, away from moisture, heat sources and extreme temperatures.

Safety during operation:

? Never interfere with the appliance while it is in operation. Before attempting to remove technical problems or perform other tasks, stop the appliance and disconnect it from the power supply.?

If you notice sparks, a burning smell or unusual operation of the appliance, disconnect it from the power supply immediately and contact the service department. Additional safety precautions

Service and repairs:?

If the product stops working properly or is damaged, contact an authorised service centre.?

Do not attempt to repair electrical or mechanical parts yourself - this may result in permanent damage and loss of warranty.

Safe disposal:

? Dispose of used products in accordance with local regulations for chemical and electronic waste disposal.?

Do not dispose of the device or chemicals in municipal waste.?

Do not pour chemical residues into the sewer or onto the ground - dispose of them in accordance with chemical waste disposal regulations.
