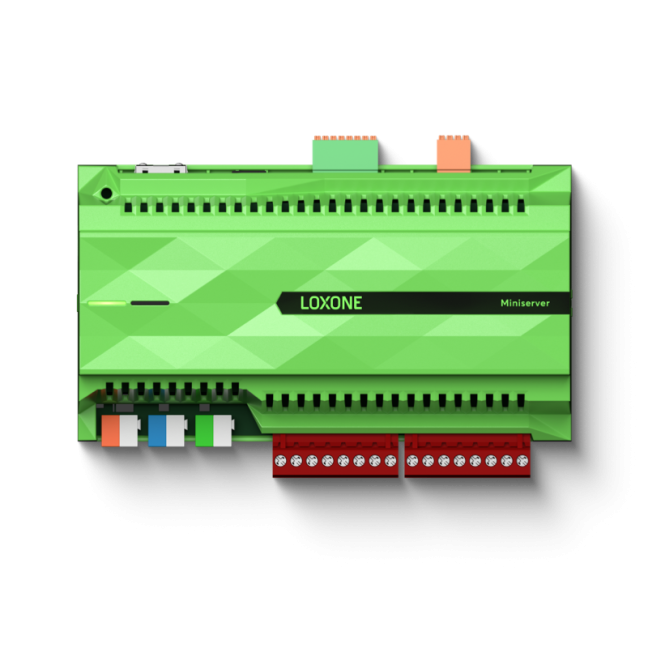

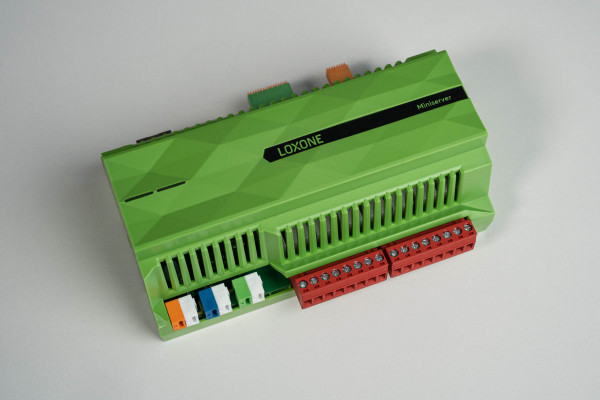

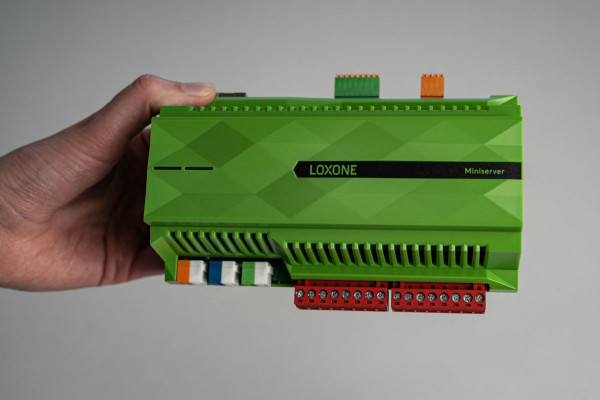

Miniserver
Miniserver
Central unit for controlling intelligent wiring in homes, businesses or special automation projects.
Loxone Miniserver was developed specifically for professional electricians. It handles most tasks for security, comfort and energy efficiency purposes.
8 digital outputs
8 digital inputs 24 V DC
4 analogue inputs 0-10 V
Loxone Link interface (up to 30 Extensions)
Loxone Tree interface (up to 50 Tree devices)
LAN interface (IPv4/IPv6, SSL, 100Mbps)
Power supply 19.2-30 V DC (PELV)

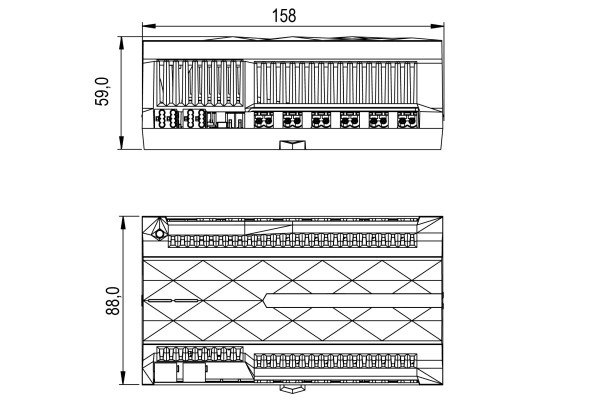

DIN rail mounting (9 positions)
Web server included (does not need cloud)
Loxone Tree Intercommunications More
Manufacturer: Loxone Electronic GmBHProduct code: 56297 Shipping and Payment
Central unit for controlling intelligent wiring in homes, businesses or special automation projects.
Loxone Miniserver was developed specifically for professional electricians. It handles most tasks for security, comfort and energy efficiency purposes.
8 digital outputs
8 digital inputs 24 V DC
4 analogue inputs 0-10 V
Loxone Link interface (up to 30 Extensions)
Loxone Tree interface (up to 50 Tree devices)
LAN interface (IPv4/IPv6, SSL, 100Mbps)
Power supply 19.2-30 V DC (PELV)
DIN rail mounting (9 positions)
Web server included (does not need cloud)
Loxone Tree Intercommunications More
Manufacturer: Loxone Electronic GmBHProduct code: 56297 Shipping and Payment

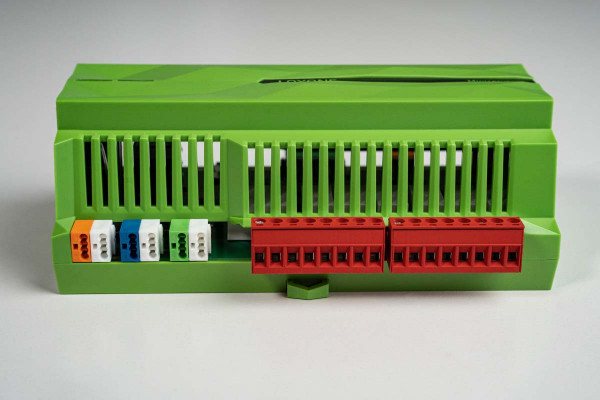

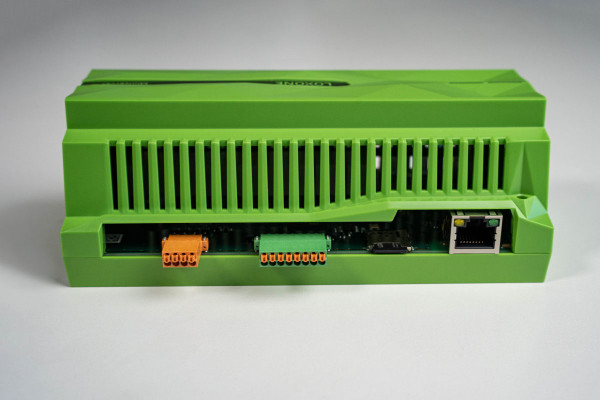

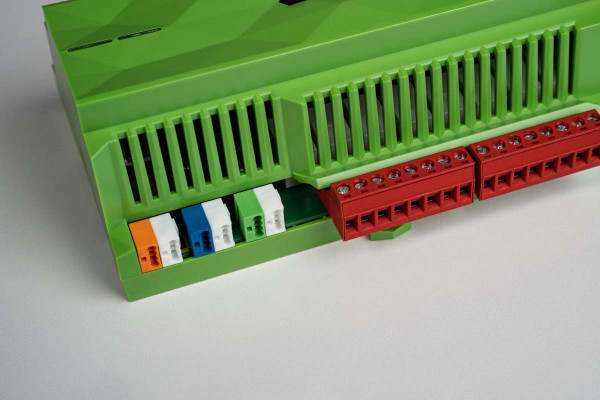

Interface overview
LAN
- IPv4/IPv6
- SSL
SD card slot
- 8 GB MicroSD for industrial use
8 × 24 V DC digital inputs with push-in technology
4 × 0-10 V analog inputs with push-in technology
Power supply 19.2-30 V DC
Loxone Link (for connecting up to 30 Extensions)
Loxone Tree (connect up to 50 Loxone Tree devices)
+ Tree intercommunication
8 × relay outputs (voltage-free)
- 250 V AC / 10 A cos?=1
- 30 V DC / 10 A
Flexible use and expandability
Loxone offers a sophisticated solution: It is based on in-house hardware and software development (free of charge, including updates), which ensures that new features and options are always available. The system also supports numerous interfaces with which the system can be extended. This makes it suitable for small, large and specific projects.
Loxone Link is the Miniserver interface for connecting extension modules - so-called Extensions.
Loxone Tree
Loxone Tree is a wired bus interface developed specifically for sensor and actuator integration. It delivers up to 80% cabling savings and ensures perfect performance and reliability.
Loxone Air
With Loxone Air technology, you can expand your installation with wireless components, or transform an existing installation into a smart one without wiring changes or building modifications (Requires Air Base Extension).

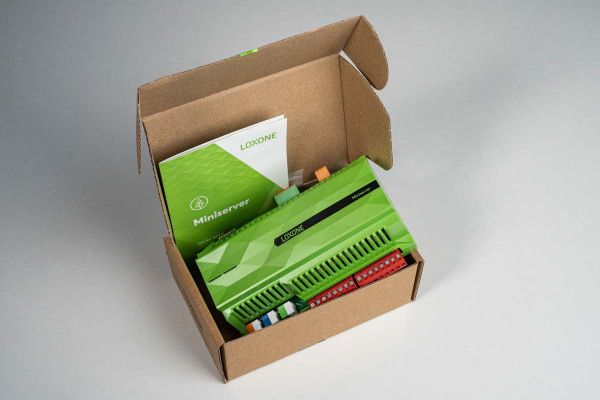

Contents of the package
1 × Loxone Miniserver
1 × 120ohm resistor for Link bus
1 × Packaging information
1 × Loxone sticker
1 × Original 8 GB industrial quality Micro-SD card (we recommend using only original SD cards)
1 × IDC Tool
