Quido OC Wago: Terminal block for Quido OC

Board with input and output terminal blocks for Quido RS 2/16 OC, Quido ETH 2/16 OC and Quido ETH 4/32 OC. There is one terminal on the board for each input/output to connect a free wire. It is used to facilitate the connection of wires to this type of I/O module, which has open collector outputs. More

Product code: 56706 Shipping and Payment

13,29 € excl. VAT (16,08 € incl. VAT)
Dodání do 3-4 týdnů
ks

Board with input and output terminal blocks for Quido RS 2/16 OC, Quido ETH 2/16 OC and Quido ETH 4/32 OC. There is one terminal on the board for each input/output to connect a free wire. It is used to facilitate the connection of wires to this type of I/O module, which has open collector outputs. More

Product code: 56706 Shipping and Payment

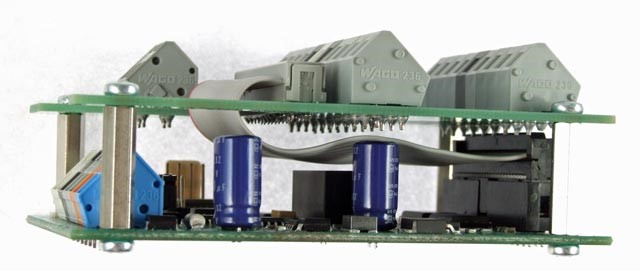

Together with the Quido I/O module, this board forms a complete 44 mm high package. Complete documentation of the entire device is available in the manual for the Quida to which it can be fitted (e.g. in the manual for Quidu RS 2/16 OC).

How many terminals are needed for a compatible Quida?

  • Quido RS 2/16 OC: 1 pc
  • Quido ETH 2/16 OC: 1 pc
  • Quido ETH 4/32 OC: 2 pcs

Included in the delivery is a board with terminals and connection cable, as well as mounting accessories for connection to the Quida board.
