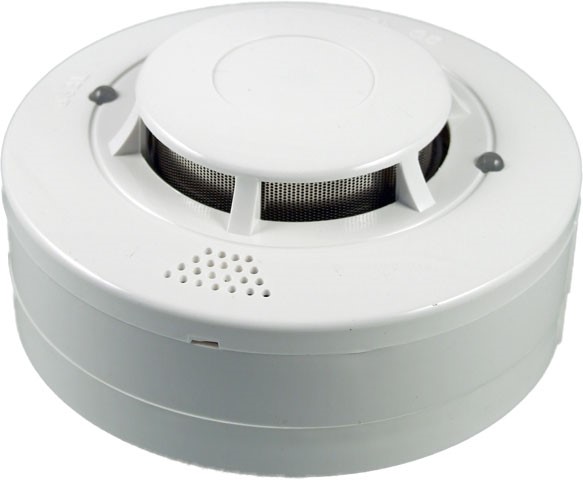

Fire detector FDR-26-S

Optical-smoke fire detector suitable for connection to Quido I/O modules.
The sensor works on the principle of smoke entering the evaluation space inside the sensor, which is illuminated by infrared light and the change of reflection parameters over time is evaluated. More

Product code: 56709 Shipping and Payment

30,12 € excl. VAT (36,45 € incl. VAT)
Dodání do 3-4 týdnů
ks

Optical-smoke fire detector suitable for connection to Quido I/O modules.
The sensor works on the principle of smoke entering the evaluation space inside the sensor, which is illuminated by infrared light and the change of reflection parameters over time is evaluated. More

Product code: 56709 Shipping and Payment

Smoke is only detected if it enters the detector directly!

Connecting the smoke detector to the Quid

Connection to Quido ETH 3/0, for example is shown in the following picture, where the connection of the fire detector to input 2 on the Quid is drawn.

Technical parameters

  • Method of fire detection: Smoke detection in the measuring chamber
  • Guarded area: up to 40m2
  • Operating temperature: 0 to 70 °C
  • For air speeds up to 600 m/min
  • Power supply: 10.5 to 14 V DC
  • Current draw: 0.032 mA (55 mA alarm)
  • Degree of coverage: IP42
  • Dimensions: 98 × 45 mm (diameter × height)
